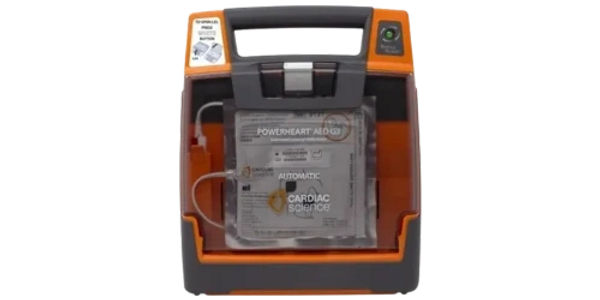

Cardiac Science AED Models

---

Part no. 9790E

The Powerheart G3 Elite uses STAR® biphasic to provide an effective shock - a patented technology proven in successful rescues across the globe. If a subsequent shock is needed, the Powerheart G3 Elite will supply variable escalating energy to deliver a higher dose of therapy to the patient.

The Powerheart G3 Elite AED is designed to be simple to use. Patented RescueCoach provides clear user-paced voice and text prompts to rescuers of any skill level. Prompts only advance after successful completion of each critical step. The Powerheart G3 Elite determines if a shock is needed and delivers the shock automatically to the SCA victim.

Each day the Powerheart G3 Elite AED performs a sophisticated series of patented self-tests throughout the device’s circuitry to verify that its battery, patented non-polarised pads, and critical components are not only connected but fully functional for the upcoming day. Many other AEDs test as infrequently as once a week.

Cardiac Science offers a strong indemnification policy that includes the AED, pads, and battery - so you’ll have additional peace-of-mind.

• Dimensions: (H × W × D) 8 cm x 27 cm x 31cm
• Weight: 3.1kg (6.6lbs), including battery and pads
• Pads shelf life: 24 months (min)
• Battery Shelf life: 5-year shelf life from date of manufacture / 4-year operational replacement
• Battery Capacity: performance 290 shocks at 300VE (typical), output voltage: 12 VDC (nominal)
• Operations Fully automatic or semi-automatic versions
• Waveform STAR® biphasic truncated exponential
• Therapy range (J) 95J to 351J (adult)
• Voice prompts RescueCoach™ prompts provide user-paced instruction
• Text screen Displays rescue prompts and critical rescue information
• Audible prompts/alerts Voice rescue and CPR prompts, system alerts
• Synchronised shock Built-in automatic Synchronisation feature
• Pacemaker pulse detection and rejection
• Paediatric capability
• Customisable Voice prompt, CPR settings, and shock protocols via MDLink
• CPR Metronome for CPR compression rate
• Visible indicators Rescue Ready® status indicator, battery, pad, service status
• Free training (NCR and surrounding provinces)
• Free delivery

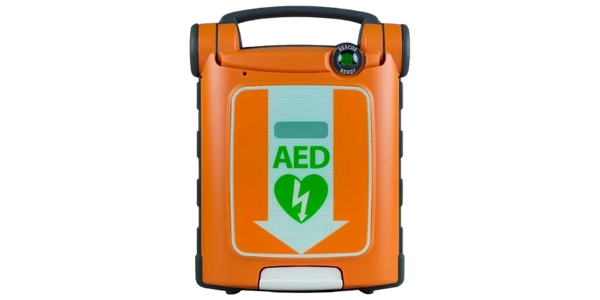

Part no. G5A-80C-P

The Powerheart G5 AED uses Intellisense CPR (ICPR) technology to monitor CPR chest compressions, providing rescuers with distinct corrective voice and text prompts: Press Slower, Press Faster, Press Softer, and Press Harder and Fully Release.

The Powerheart G5 AED performs comprehensive self-testing to ensure it is ready to rescue. Studies have shown that approximately 46% of AED failures are due to pad, pad connector, or battery power problems.6 The Powerheart AED self-tests detect and help prevent these issues.

RescueCoach® prompts guide users step-by-step through the rescue process. The AED recognizes actions taken and ensures that the rescuer completes every critical task before moving on to the next.

Conducts regular, automatic self-tests on pads, battery and internal circuitry to ensure your AED is always Rescue Ready®.

• Dimensions: 9 × 23 × 30 cm
• Weight: 2.6 kg including battery and pads
• Dust / water resistance: IP55 (IEC 60529)
• Drop tolerance: 1.22m (MIL-STD-810G, 516.6 (Procedure IV))
• Energy selection (Adult): 95 to 354 Joules
• Energy selection (child): 22 to 82 Joules
• Infant / child capability: Infant / child pads sold separately.
• Internal memory: 90 minutes of rescue data, multiple rescue functionality
• Fully automatic defibrillator (AED) for treatment of Sudden Cardiac Arrest (SCA)
• Suitable for users of all abilities
• Voice and text prompts keep the user calm and informed
• Features Intellisense CPR Feedback providing the rescuer with text and voice corrective CPR prompts for rate, depth and recoil
• Uses Rescue Ready technology to self tests daily, weekly and monthly with audible alert if any issues found
• Free training (NCR and surrounding provinces)
• Free delivery
