Philips AED Models
Effectiveness
The Powerheart G3 Elite uses STAR® biphasic to provide an effective shock - a patented technology proven in successful rescues across the globe. If a subsequent shock is needed, the Powerheart G3 Elite will supply variable escalating energy to deliver a higher dose of therapy to the patient.
Treat confidently

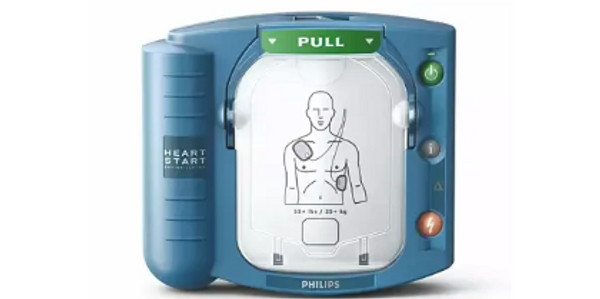

With access to the right equipment and support, you can help save a life. HS1 guides you through the process of treating a victim of suspected SCA. HS1 provides practical, real-time guidance through step-by-step voice commands and CPR guidance.
Easy as 1-2-3
We’ve equipped HS1 with integrated SMART Pads that will provide feedback to the AED so it can adapt its voice instructions to your actions and your pace. The system won’t announce the next step until you are ready. Prompts are repeated and rephrased if needed and include additional instruction to aid understanding.
Fast Acting
Patented Quick Shock feature allows HS1 to typically deliver a shock within eight seconds after CPR.
Product Highlights
- Size: 7.2 cm x 19 cm x 21 cm (2.8 in x 7.4 in x 8.3 in) H x D x W
- Weight: With battery and pads cartridge: 1.5 kg (3.3 lb) Without battery or pads cartridge: 1 kg (2.4 lb)
- Pads shelf life: 24 months (min)
- Battery Shelf life: Typically, 4 years when battery is installed and when stored and maintained according to directions provided in this document
- Battery Capacity: Minimum 200 shocks or 4 hours of operating time
- Operations: Fully automatic or semi-automatic versions
- Waveform: Truncated Exponential Biphasic; waveform parameters adjusted as a function of each patient’s impedance.
- Therapy Adult defibrillation: peak current 32 A (150 J nominal into a 50 ohm load) Pediatric defibrillation with optional Infant/Child SMART Pads Cartridge installed: peak current 19 A (50 J nominal into 50 ohm load)
- Shock-to-shock cycle time: Typically less than 20 seconds between shocks in a series
- Voice instructions: Detailed voice messages guides the responder through use of the defibrillator
- CPR guidance Instructions for infants and children under 25 kg (55 lb) or 0-8 years old, and adults and children over 25 kg (55 lb) or greater than 8 years old
- Shock delivery: Via adhesive pads placed on patient’s bare skin
- Audible prompts/alerts: Voice rescue and CPR prompts, system alerts
- Pacemaker pulse detection and rejection
- Paediatric capability
- Data stored First 15 minutes of ECG and the entire incident’s events and analysis decisions
- CPR guidance: Verbal instructions for adult and infant/child CPR provide instructions and audio cues for the appropriate number, rate and depth of chest compressions, as well as for each breathStatus Indicators Blinking green “Ready” light indicates ready for use; audible “chirp” indicates need for maintenance
- Free training (NCR and surrounding provinces)
- Free delivery
Proven therapy

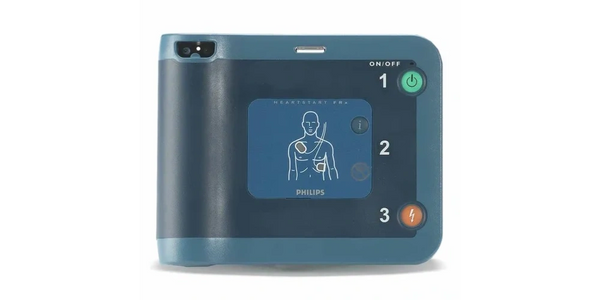

Real-time, step-by-step voice commands paced to your actions, and an audible metronome and CPR guidance assist the responder. When treating an infant or child, simply insert the optional Infant/Child Key and the FRx adjusts instructions and therapy.
Ease of use
Pre-connected SMART Pads II can be used for both adults and children. Once installed and activated, the FRx is easy to maintain. It performs a series of automatic self-tests daily, weekly and monthly to check pad readiness and verify functionality and calibration of circuits and systems. It can last up to four years between battery replacements.
Durable
Lightweight, rugged and reliable, the FRx can withstand rough handling, extreme temperatures, and dusty or wet surfaces. Designed for use in harsh settings, it can withstand up to 500 kg (1,100 lb) and drops from 1.2 m (4 ft).
Reliable
Performs a series of automatic self-tests daily, weekly and monthly to check pad readiness and verify functionality and calibration of circuits and systems.
Product Highlights
- Size: 18 x 6 x 22 cm (7.1 x 2.4 x 8.8 in) H x D x W
- Weight Approximately: 1.6 kg (3.5
- Pads shelf life: 24 months (min)
- Battery Shelf life: Typically, 5 years when battery is installed and when stored and maintained according to directions provided in the user guide
- Battery Capacity: Minimum 200 shocks or 4 hours of operating time
- Operations: Fully automatic or semi-automatic versions
- Waveform: Truncated Exponential Biphasic; waveform parameters adjusted as a function of each patient’s impedance.
- Therapy Adult defibrillation: peak current 32 A (150 J nominal into a 50 ohm load) Pediatric defibrillation with optional Infant/Child SMART Pads Cartridge installed: peak current 19 A (50 J nominal into 50 ohm load)
- Shock-to-shock cycle time Typically less than 20 seconds between shocks in a series
- Voice instructions Detailed voice messages guides the responder through use of the defibrillator
- CPR guidance Instructions for infants and children under 25 kg (55 lb) or 0-8 years old, and adults and children over 25 kg (55 lb) or greater than 8 years old
- Shock delivery Via adhesive pads placed on patient’s bare skin
- Audible prompts/alerts Voice rescue and CPR prompts, system alerts
- Pacemaker pulse detection and rejection
- Paediatric capability
- Data stored First 15 minutes of ECG and the entire incident’s events and analysis decisions
- CPR guidance: Verbal instructions for adult and infant/child CPR provide instructions and audio cues for the appropriate number, rate and depth of chest compressions, as well as for each breath
- Status Indicators Blinking green “Ready” light indicates ready for use; audible “chirp” indicates need for maintenance
- Free training (NCR and surrounding provinces)
- Free delivery
