Easy to use for both BLS and ALS teams
With an intuitive door system, the LIFEPAK 20e functions as an automated external defibrillator (AED) for your BLS teams, who can begin early defibrillation before the resuscitation team arrives Standardized and clear user interface, so teams who use legacy devices will recognize it immediately
High Spec and Rugged

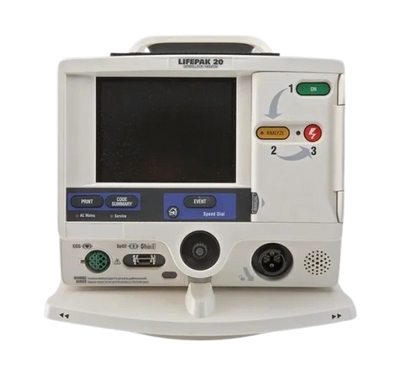

Designed specifically for crash carts and patient transport, the LIFEPAK 20e defibrillator/ monitor offers 360J escalating biphasic energy for both manual and automated defibrillation. An optional module provides advanced monitoring and facilitates CPR effectiveness. It’s often necessary to quickly and easily switch between AED and manual modes to suit the situation and the skills of staff at hand.
Flexibile Module
Some patients are more difficult to defibrillate than others and require higher escalating biphasic energy to fibrillate. They may also require advanced monitoring capability. Take advantage of multiple power supply options, including a long-lasting lithium-ion battery. The CodeManagement Module and a flexible platform enable the LIFEPAK 20e to provide monitor options for different departments and to adapt to evolving uses, protocols, and guidelines.
Improves your resuscitation management
Waveform capnography is the most reliable verification of endotracheal tube position during cardiac arrest and can assist in assessing quality of CPR. (Strong recommendation in the ERC Guidelines 2015). Other monitoring parameters include ECG (3- or 5-wire), pacing, pulse oximetry. Metronome helps rescuers perform compressions at a rate of 100 per minute, within the ERC Guidelines recommended compression rate.
Product Highlights
- Size (active viewing area): 115.18 mm (4.53 in) wide x 86.38 mm (3.4 in) high
- Resolution: 320 x 240 dot color active LCD
- Displays a minimum of 3.7 seconds of ECG and alpha numeric for values, device instructions or prompts
- Waveform display sweep speed: 25 mm/sec for ECG and SpO2
- ECG can be monitored through 3-wire or 5-wire ECG cables.
- Standard paddles or therapy electrodes (QUIK-COMBO pacing/defibrillation/ECG electrodes) are used for paddles lead monitoring.
- Compatible with LIFEPAK 12 ECG and therapy cables.
- Lead selection:
- Leads I, II and III, (3-wire ECG cable)
- Leads I, II, III, AVR, AVL and AVF, V (c) acquired simultaneously, (5-wire ECG cable)
- ECG size: 4, 3, 2.5, 2, 1.5, 1, 0.5, 0.25 cm/mV
- AC powered: 100–120 VAC 50/60Hz, 220–240 VAC 50/60 Hz, total power draw less than 120 Volt- Amperes (VA).
- Internal battery backup
- Energy select: 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 125, 150, 175, 200, 225, 250, 275, 300,325, and 360 joules and user configurable sequence of 100–360, 100–360, 100–360 joules
- Charge time to 200J <5 seconds with fully charged battery
- Charge time to 360J <7 seconds with fully charged battery
- Charge time to 360J <10 seconds while not in low battery operations
